MOD-3A-HVT

MOD 3A HVT


MOD-3A
3/C Cable Trifurcating Kit
Converts 3/C Cable
into 3 1/C Cables
Cable Jacket OD:  1.25-3.85"
Cable Shield OD: .5-1.25"
Ground Conductor OD: .25-.55"

Mod-3-HVT
MOD 3x, 3y, 3a, 3b
High Voltage Termination
Modification kit for 3/C Shielded
and Non-Shielded Power Cable

     This kit includes the following parts:
Includes the molded boot.

Includes a short segment of WCSM 70/20-U

Includes the Ground Connecting Tubes - an MWTM 16/5-U

Includes the phase rejacketing tubes - MWTM 35/12-U







Monday, April 17, 2017

TE / Raychem Newsletter

TE / Raychem Newsletter April 17, 2017



Products that Power People

With a portfolio of globally-recognized product lines,
TE Connectivity (TE) delivers world-class performance for any project. We pioneered the use of heat shrink technology with the introduction of our Raychem product line over 60 years ago, and were the first to use silicone materials for hollow core insulators. Today, our engineers use new materials with enhanced properties to support ever-changing energy demands.

As the force behind some of the largest product lines for substation connectivity, including Bowthorpe EMP, SIMEL and AXICOM, TE has established a reputation for superior reliability and quality. We’re always on the forefront of technology and innovation, creating lighter, smaller environmentally-friendly solutions for a full range of low, medium and high voltage applications.

From renewable raw material resins to products that are resistant to thermal aging and UV light, TE brings an expertise in materials science to life with a variety of innovative, real-world applications.

See how TE’s solutions can power your next project at te.com/energy.

Engineering a Greener Tomorrow









GUROFLEX-N








As part of our commitment to energy efficiency, we’ve started using new, environmentally-friendly materials. One of our most recent developments in Europe is the GUROFLEX-N lead-free casting material made from renewable raw materials. This solvent-free product is water and corrosion resistant and is an excellent insulating material.

Connect directly with a TE expert




Monday, April 3, 2017

BPTM Busbar Insulation

BPTM Tubing

BPTM Raychem
BPTM 15/6-A/U (50 ft roll)

    Raychem / TE Connectivity's medium wall, heat shrinkable BPTM tubing provides insulation enhancement and protection against flash over and accidentally induced discharge.

     Particularly useful in confined spaces, BPTM tubing can be used on both circular and rectangular copper or aluminum busbars. On application of heat, the BPTM tubing shrinks snugly over the busbar profile ensuring that the required minimum wall thickness is obtained.  Raychem BPTM tubing can be installed easily during large scale production using an oven or in the field using a gas torch or hot air.  Raychem BPTM tubing is manufactured from a non-halogen based polymer which has excellent performance in high voltage environments and greatly reduces the noxious and corrosive effects in fire situations.
raychem tubing

raychem bptm roll
    The use of TE's Raychem BPTM tubing allows equipment designers the freedom to reduce air spacing between busbars, such as in the manufacture of switchgear cabinets where space is at a premium.  Raychem BPTM tubing provides flashover protection up to 25kV.
raychem bptm instructions
 Key Features:
  • Exceptional insulation and long term reliability even at high continuous operating temperatures.
  • Extremely durable, resists damage from solvents, ultraviolet light, weathering, mechanical impact and general wear and tear.
  • Suitable for indoor and outdoor use.
  • Excellent anti-tracking properties.
  • Can be stored indefinitely at temperatures up to 50C without loss of performance.

busbar insulation tubing

BPTM is available in the following sizes:
  • BPTM 15/6
  • BPTM 30/12
  • BPTM 50/20
  • BPTM 75/30
  • BPTM 100/40
  • BPTM 120/50
  • BPTM 175/70
  • BPTM 205/110
  • BPTM 235/130

Wednesday, March 8, 2017

CSTO - Cold Shrink Termination for Outdoor Use

CSTO 154G: Cold Shrink Termination

cold applied termination
      CSTO is an outdoor cold shrink termination for copper tape shield cable rated to 15kV.  The components for this kit are as follows:
  • Installation instructions
  • Silicone Housing on holdout
  • 2 gray sealing mastic
  • roll spring
  • solder blocked ground braid
  • 2 adhesive backed copper tape strips
  • cutback template
     In terms of installation equipment (not supplied with kit):
  • Cable preparation tools
  • TE P63 cable prep kit
  • Clean lint free cloth
  • Non-Conductive abrasive cloth (120 grit or finer)
  • Electricians tape
  • Connector and installation tool


outdoor cold applied termination
The expanded main component
      This is the workhorse of the CSTO kit - the "silicone housing on holdout" - it is stretched quite a lot and when the holdout is removed, it snaps down to a much smaller dimension offering insulation and protection to your cable.


CSTP cold shrink

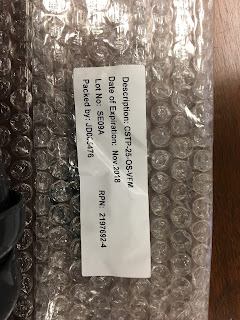

      This is the technical name of just that silicone component:  CSTP-25-OS-VFM.


CSTO-150G
     The other components of the kit - the braided ground wire, the spring and the adhesive strips.

     This product is remarkably simple to install - see the following installation video:


Tuesday, March 7, 2017

HVBT - High Voltage Bus Tape

HVBT-2-R-01

High Voltage Bus Tape

     This is yet another TE product that we keep in stock available for same day shipping.  HVBT is a high voltage, self-amalgamating tape for round and rectangular bus bars.
high voltage bus tape
HVBT-2-R-01 - Raychem/Tyco Electronics product
     Now, before we get started I'd like to talk about this sticker:
high voltage tape
Now, that's an important sticker
     This is one of the most important stickers I've ever seen on a product.  This is not one of those stickers that tells you "don't remove this tag from the mattress" -- and this is not one of those stickers that says "do not stick your fingers in the blender while it is running."  This sticker tells you something IMPORTANT.   It is a little unusual in most of the heat shrink world for a product to be rolled adhesive side out and there not be a release paper of some kind -- but that is the case for the HVBT.  Pay attention to that sticker or your product is not going to install or work properly.  Good job Raychem for being as clear as possible.

     The HVBT is spiral wrapped around the busbar, applying some amount of heat along the way to prevent ending up with multiple layers of heat shrink that do not shrink because they are insulated by too many outer layers of HVBT.
hvbt roll

     HVBT is sold in standard quantities of 4 rolls.  Rolls are 25 feet long.  We can (on occasion) break standard box quantities if necessary, so don't be afraid to ask if you have a smaller requirement than 100 feet of material.

     Tyco Electronics has an excellent installation video that shows just how easy this product is to install.  You can see it below:


Monday, March 6, 2017

Raychem HVT-Z-80-G/SG

HVT-Z-80-G/SG

     Joint Specialists is now stocking HVT-Z-80-G/SG.  We keep a number in stock (and about 50 other Tyco Electronics / Raychem products) so feel free to check with us for current inventory levels.  We do ship most of our items same day from our warehouse in Conroe, TX.

     Going to start a series where I highlight / spotlight one Raychem / Tyco Electronics product each day.  Today we are looking HVT-Z-80.

     First the product summary:  5/8 kV, 1/C indoor/outdoor termination kit for copper tape, wire shield, and unishield cables.

     Nominal use range:  #4 - #1 AWG 5kV or #6-#2 AWG for 8kV.
     Insulation OD Range: .35-.60" (9-15mm)
     Max Cable Jacket Diam: .95" (24mm)

So, what comes in a kit?
HVT-z-80-G/SG

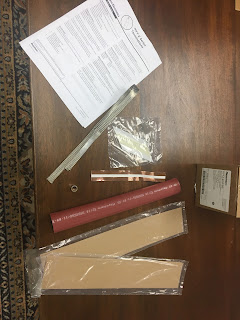

This is the kit you get when you buy an HVT-Z-80-G/SG
Let's take a closer look at this though, breaking down into smaller pictures:
Raychem 32/10
Raychem Red non-Tracking Tube and 2 Red Mastic Strips

Strips of copper backed tape
1 Yellow Angle-cut mastic strip and 2 strips of copper backed tape

solder-blocked braid
Solder blocked braid and a ground clamp spring
     That is what you will get every time you order a single HVT-Z-80-G/SG.

     Now let's take a look at an installation video for HVT-Z (not 80)
